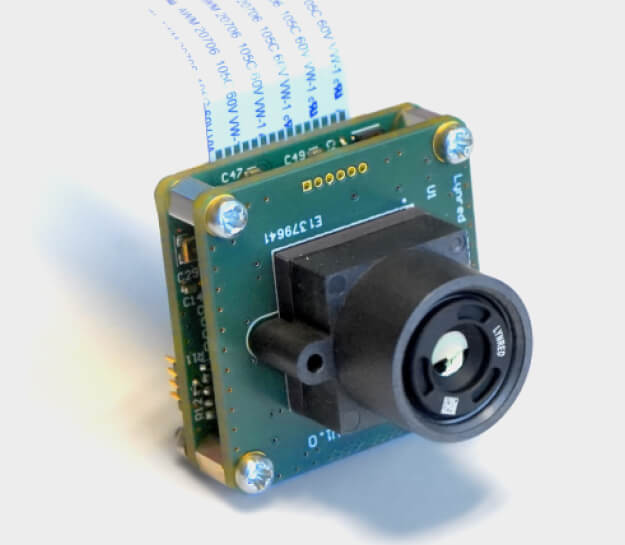

Infrared Sensor Module with MIPI CSI-2 Digital Output
The long-wave infrared module (LWIR) ISM-ATTO640D (8-12 µm) has been specifically developed to interface with NVIDIA GPUs. Ideal for SWaP (Size, Weight, and Power) applications, it is the smallest detector on the market in VGA format.
Compatible with NVIDIA JETSON Xavier NX and Nano Developers Platforms, V4L2 Based Device Driver. The ISM-ATI320 infrared module is specifically developed to interface with NVIDIA GPUs
Key Features
- 640 x 480 – 12µm pixel pitch, Lynred thermal imager
- GUI Software including NUC & BPR
- Shutterless continuous imaging
- Low power LWIR sensor (< 300 mW)
IR Image sensor
- Vendor / Name: Lynred ATTO640D-02
- Technology: Uncooled (Microbolometer), LWIR
- Pixel pitch: 12µm Max.
- Resolution: 640 x 480
- Sensor performance NETD: < 50 mK (for ATTO640D-02)
- Optical lens: 5.3 mm F/1.3 HFOV (89°) fixed focus or 4.3mm F/1.2 HFOV (112°) fixed focus
- Bit depth: 14 bits
Interface
- Module Interface: MIPI CSI-2, 2 lanes
- Control Interface: I2C (2 wires serial communication)
- Clock Frequency: 40 MHz
- Interface Connector: MOLEX FPC 15POS 1.0 MM : 52271-1579
- Trigger Input: Yes, 3.3V LVTTL / LVCMOS
- Trigger Output: Yes, 3.3V LVTTL / LVCMOS
- GPIO: 1 OUT, 1.8V LVCMOS
Mechanical
- Dimensions (LxWxH): Stacking size 30mm x30mm x10mm
Electrical & Environmental
- Input voltage: 5V to 15V.
- Power consumption: < 0.60 W (including IR image sensor)
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- Ambient Humidity: 95% RH
Software Support
- Driver: V4L2 Based: Device Driver
- Supported Platform(s): NVIDIA JETSON Xavier NX / JETSON Nano
- Linux Version(s): Kernel 4.9.201
- API Language: C / C++
Accessories
- Flex cable 150 mm: WURTH : WR-FFC 686715152001
Interface GUI for NVIDIA JETSON Xavier NX and Nano
- ISEye GUI and SDK: Camera Control, Image Capture and Viewer Software
